【HTML5】 レスポンシブデザイン 画像のサイズを可変に設定
HTML5でレスポンシブデザインのページを作ってみました。
画像のサイズは可変に設定してあるので、画面のサイズを変えても崩れません。

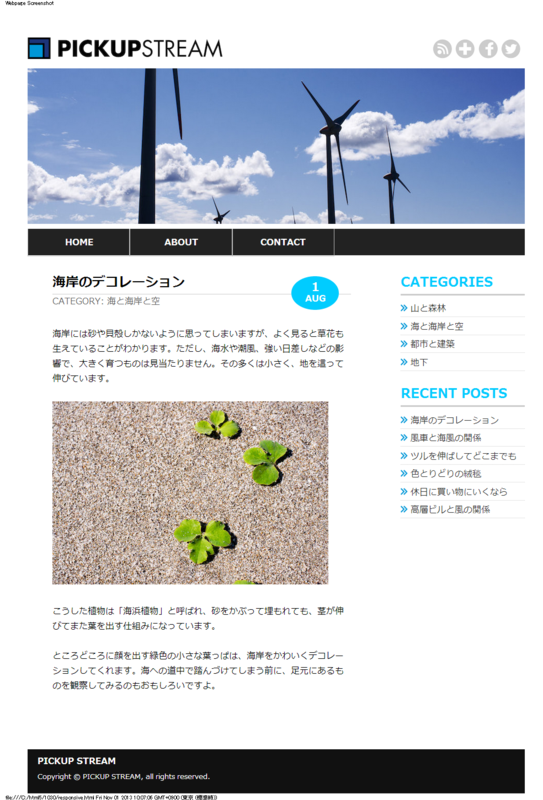

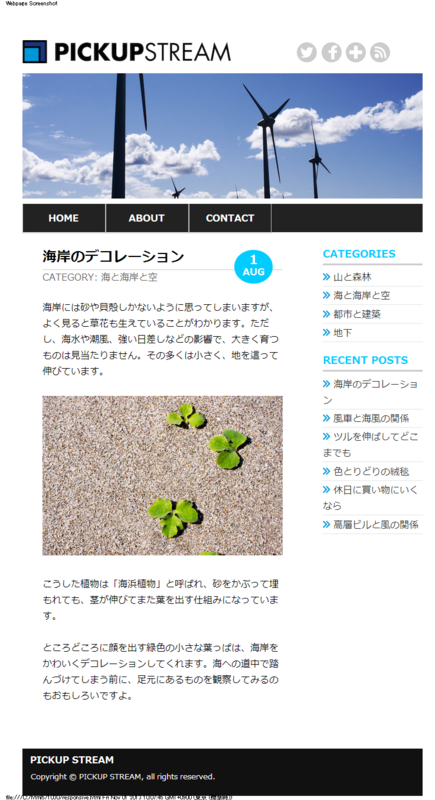

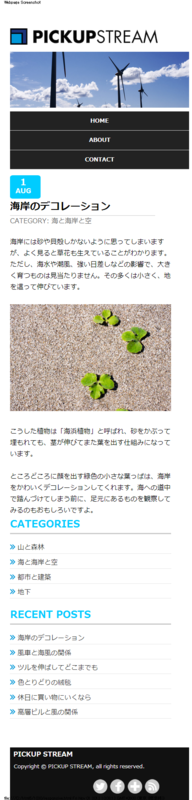

PC用、タブレット用、スマートフォン用で切り替わるようになっています。
ポイント
①以前、同天下一WEB道会で紹介したレスポンシブデザインでは、ひとつのCSSに全ての条件を記述していましたが、今回は条件ごとにCSSを分けて記述してあります。
②画像のサイズを可変にするために、以下のように設定してあります。
img { max-width: 100%; height: auto; }
③前回同様、特殊なCSSであるスマートフォン用のCSSから記述していきます。ただ、私はPC用のものから記述してしまったので、今回のコードに無駄なものが多く含まれていると思います。修正後アップロードしなおします。
【index.html】
<!DOCTYPE html> <html lang="ja"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width"> <title>レスポンシブデザイン実践</title> <meta name="viewport" content="width=device-width"> <link rel="stylesheet" href="css/style-s.css"> <link rel="stylesheet" href="css/style-m.css" media="only screen and (min-width:600px) and (max-width:979px)"> <link rel="stylesheet" href="css/style-l.css" media="only screen and (min-width:980px)"> <!-- Webフォントの設定 --> <link href='http://fonts.googleapis.com/css?family=Maven+Pro:900,400' rel='stylesheet' type='text/css'><!--[if lte IE 9]> <script src="http://html5shiv.googlecode.com/svn/trunk/html5.js"></script> <![endif]--> <!--[if lte IE 9]> <script src="http://ie7-js.googlecode.com/svn/version/2.1(beta4)/IE9.js"></script> <![endif]--> </head> <body> <div id="container"> <header> <h1><img src="img/logo.png" width="360" height="39" alt="PICKUP STREAM"></h1> <ul> <li><a href="#"><img src="img/twitter.png" width="35" height="35" alt="twitter"></a></li> <li><a href="#"><img src="img/facebook.png" width="35" height="35" alt="facebook"></a></li> <li><a href="#"><img src="img/googleplus.png" width="35" height="35" alt="google plus"></a></li> <li><a href="#"><img src="img/rss.png" width="35" height="35" alt="RSS"></a></li> </ul> <p><img src="img/header.jpg" width="960" height="300" alt="トップイメージ"></p> </header> <nav> <ul> <li><a href="#">HOME</a></li> <li><a href="#">ABOUT</a></li> <li><a href="#">CONTACT</a></li> </ul> </nav> <div id="content"> <article> <p id="date"><span>1</span><br>AUG</p> <h1>海岸のデコレーション</h1> <p id="category">CATEGORY: 海と海岸と空</p> <p>海岸には砂や貝殻しかないように思ってしまいますが、よく見ると草花も生えていることがわかります。ただし、海水や潮風、強い日差しなどの影響で、大きく育つものは見当たりません。その多くは小さく、地を這って伸びています。<p> <br> <img src="img/sand.jpg" width="500" height="332" alt="砂浜"> <br><br> <p>こうした植物は「海浜植物」と呼ばれ、砂をかぶって埋もれても、茎が伸びてまた葉を出す仕組みになっています。</p> <br> <p>ところどころに顔を出す緑色の小さな葉っぱは、海岸をかわいくデコレーションしてくれます。海への道中で踏んづけてしまう前に、足元にあるものを観察してみるのもおもしろいですよ。</p> </article> <aside> <h2>CATEGORIES</h2> <ul> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">山と森林</a></li> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">海と海岸と空</a></li> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">都市と建築</a></li> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">地下</a></li> </ul> <h2>RECENT POSTS</h2> <ul> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">海岸のデコレーション</a></li> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">風車と海風の関係</a></li> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">ツルを伸ばしてどこまでも</a></li> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">色とりどりの絨毯</a></li> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">休日に買い物にいくなら</a></li> <li><a href="#"><img src="img/listmark.png" width="13" height="13" alt="矢印">高層ビルと風の関係</a></li> </ul> </aside> </div> <!--/#content--> <footer> <p>PICKUP STREAM</p> <small>Copyright © PICKUP STREAM, all rights reserved.</small> </footer> </div> <!--/#container--> </body> </html>
【style-s.css】
@charset "utf-8"; /*RESET*/ body, div, h1, h2, p, ul, li, header, nav, article, aside, footer { margin: 0; padding: 0; } img { max-width: 100%; height: auto; } ul li { list-style: none; } ul li a { text-decoration: none; } body { font-family: "Hiragino Kaku Gothic ProN", Meiryo, sans-serif; line-height: 1.7; } /*STYLE*/ #container { width: 100%; margin-top: 3em; position: relative; } header { width: 90%; margin: 0 auto; overflow: hidden; } header h1 { float: left; } header ul { position: absolute; left: 46%; top: 97%; } header ul li { float: left; padding: 0.2em; } header p img { width: 100%; } #content { width: 90%; margin: 0 auto; overflow: hidden; } article { width: 90%; float: left; position: relative; } article h1 { width: 90%; border-bottom: 1px solid #CCC; } article p#category { color: #666; } article p#date { width: 10%; padding: 2% 6% 2% 3%; background: #0CF; color: #FFF; text-align: center; border-radius: 10%; font-weight: bold; line-height: 1.2em; } article p#date span { font-size: 22px; font-weight: bold; } article p#category { margin-bottom: 6%; } aside { width: 90%; margin-bottom: 5%; } aside h2 { color: #0CF; font-weight: 700; border-bottom: 3px solid #CCC; margin-bottom: 5%; } aside ul { margin-bottom: 5%; } aside img { margin-right: 5px; max-width: 100%; } aside li { border-bottom: 1px dotted #CCC; margin-bottom: 2%; } aside ul li a { display: block; color: #333333; } aside ul li a:hover { background: #0CC; color: #FFF; } nav { width: 90%; margin: 0 auto 3% auto; background-color: #222; } nav ul li { width: 100%; text-align: center; border-bottom: 1px solid #CCC; font-size: 14px; font-weight: bold; margin: 0 auto; } nav ul li a { display: block; color: white; padding: 0.8em 1em 0.8em 1em; } nav ul li a:hover { background: #111; } #content { margin-bottom: 10%; } footer { width: 90%; height: 8em; background: #111; margin: 0 auto; } footer p { color: #FFF; margin: 2% 0 0 2%; padding-top: 1%; font-weight:bold; } footer small { color: #FFF; margin: 2% 0 0 2%; }
【style-m.css】
@charset "utf-8"; /*RESET*/ body, div, h1, h2, p, ul, li, header, nav, article, aside, footer { margin: 0; padding: 0; } ul li { list-style: none; } ul li a { text-decoration: none; } body { font-family: "Hiragino Kaku Gothic ProN", Meiryo, sans-serif; line-height: 1.7; } /*STYLE*/ #container { width: 100%; margin-top: 3em; } header { width: 90%; margin: 0 auto; overflow: hidden; position: relative; } header h1 { float: left; } header ul { float: right; position: absolute; left: 68%; top: 0%; } header ul li { float: left; padding: 0.2em; } header p img { width: 100%; max-width: 100%; } nav { width: 90%; height: 3em; margin: 0 auto 3% auto; background-color: #222; } #content { width: 90%; margin: 0 auto; overflow: hidden; } article { width: 60%; float: left; position: relative; margin-left: 5%; } article h1 { width: 100%; border-bottom: 1px solid #CCC; } article p#date { width: 10%; padding: 2% 3% 2% 3%; background: #0CF; color: #FFF; text-align: center; border-radius: 60%; position: absolute; left: 80%; top: 1%; font-weight: bold; line-height: 1.2em; } article p#date span { font-size: 22px; font-weight: bold; } article p#category { margin-bottom: 6%; } aside { width: 25%; float: right; } aside h2 { color: #0CF; font-weight: 700; } aside ul { margin-bottom: 10%; } aside img { margin-right: 5px; } nav ul li { width: 20%; float: left; text-align: center; border-left: 1px solid #BBB; border-right: 1px solid #BBB; font-size: 16px; padding: 0.1em 0.1em 0.1em 0.1em; } aside h2 { font-size: 18px; } aside ul li a { display: block; color: #333333; } aside ul li a:hover { background: #0CC; color: #FFF; } nav ul li a { display: block; color: white; padding: 0.6em 1em 0.6em 1em; } #content { margin-bottom: 10%; } footer { width: 90%; height: 5em; background: #111; margin: 0 auto; } footer p { color: #FFF; margin: 2% 0 0 2%; padding-top: 1%; } footer small { color: #FFF; margin: 2% 0 0 2%; }
【style-l.css】
@charset "utf-8"; /*RESET*/ body, div, h1, h2, p, ul, li, header, nav, article, aside, footer { margin: 0; padding: 0; } ul li { list-style: none; } ul li a { text-decoration: none; } body { font-family: "Hiragino Kaku Gothic ProN", Meiryo, sans-serif; line-height: 1.7; } /*STYLE*/ #container { width: 100%; margin-top: 3em; position: relative; } header { width: 90%; margin: 0 auto; overflow: hidden; } header h1 { float: left; } header ul { float: right; position: absolute; left: 78%; top: 0%; } header ul li { float: right; padding: 0.2em; } header p img { width: 100%; max-width: 100%; } nav { width: 90%; height: 3em; margin: 0 auto 3% auto; background-color: #222; } #content { width: 90%; margin: 0 auto; overflow: hidden; } article { width: 60%; float: left; position: relative; margin-left: 5%; } article h1 { width: 100%; border-bottom: 1px solid #CCC; } article p#date { width: 10%; padding: 2% 3% 2% 3%; background: #0CF; color: #FFF; text-align: center; border-radius: 60%; position: absolute; left: 80%; top: 1%; font-weight: bold; line-height: 1.2em; } article p#date span { font-size: 22px; font-weight: bold; } article p#category { margin-bottom: 6%; } aside { width: 25%; float: right; } aside h2 { color: #0CF; font-weight: 700; } aside ul { margin-bottom: 10%; } aside img { margin-right: 5px; } nav ul li { width: 20%; float: left; text-align: center; border-left: 1px solid #BBB; border-right: 1px solid #BBB; font-size: 16px; padding: 0.1em 0.1em 0.1em 0.1em; } nav ul li a { display: block; color: white; padding: 0.6em 1em 0.6em 1em; } #content { margin-bottom: 10%; } footer { width: 90%; height: 5em; background: #111; margin: 0 auto; } footer p { color: #FFF; margin: 2% 0 0 2%; padding-top: 1%; } footer small { color: #FFF; margin: 2% 0 0 2%; } aside ul li a { display: block; color: #333333; } aside ul li a:hover { background: #0CC; color: #FFF; }
